Trusted
Chosen to monitor over 5.2 million patients*
FloTrac system
The Critical Care product group is now part of BD (Becton, Dickinson and Company). Edwards Lifesciences is the manufacturer of the products.
The minimally-invasive FloTrac system is a proven solution for advanced hemodynamic monitoring that automatically calculates key flow parameters every 20 seconds. Continuous clarity provided by the FloTrac system offers proactive decision support to manage hemodynamic instability and help you ensure adequate patient perfusion.

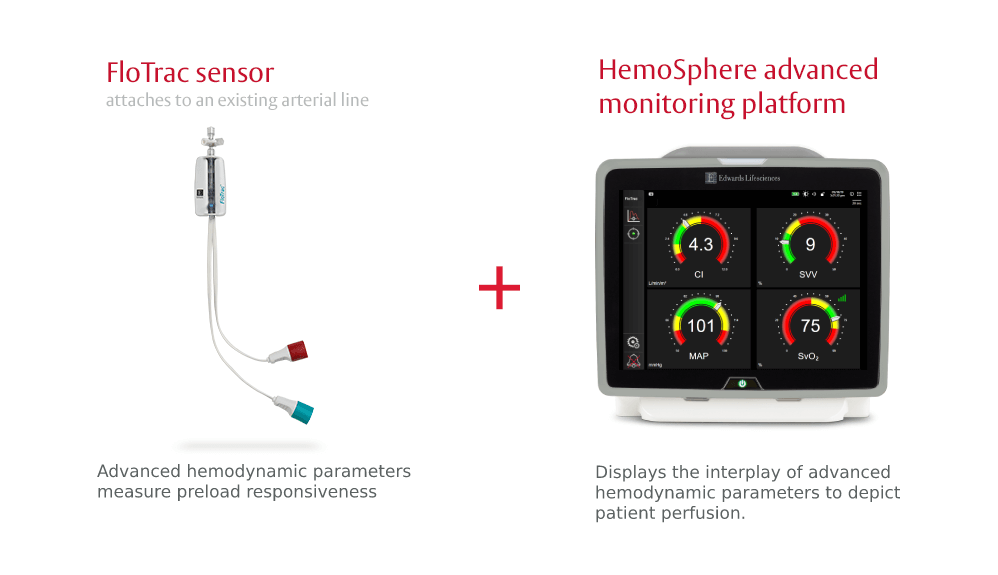

FloTrac system

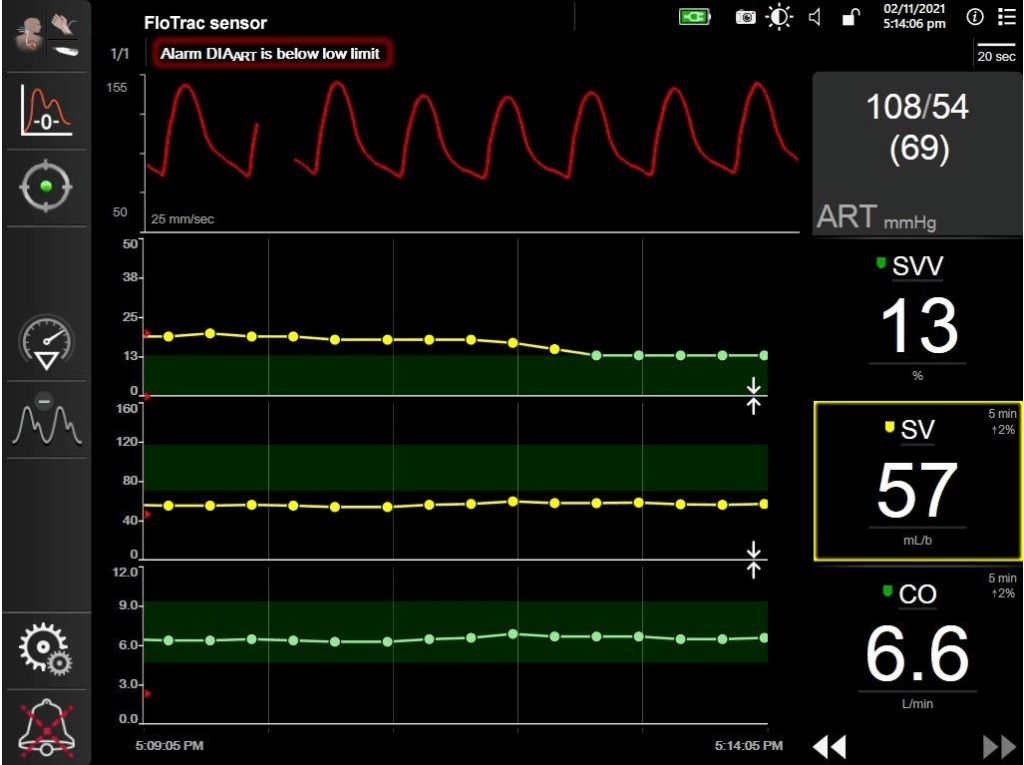

The FloTrac sensor parameters displayed on the HemoSphere monitor show patient status at a glance, for visual clinical support and increased clarity in volume administration.
Proactive decision support offered by the FloTrac system helps guide individualized treatment decisions for your moderate- to high-risk surgery patients, and can be utilized perioperatively to proactively manage your patient’s physiological status in rapidly changing clinical situations in acute care settings.
Advanced hemodynamic parameters that update every 20 seconds
- Stroke Volume (SV)
- Stroke Volume Variation (SVV)
- Mean Arterial Pressure (MAP)
- Systemic Vascular Resistance (SVR)
- Cardiac Output (CO)
The proven solution for individualized hemodynamic optimization
Worldwide
73 Countries.* Used by clinicians worldwide for minimally-invasive volume management.
Literature
Referenced in over 300+ clinical studies* spanning the OR and ICU
FloTrac system algorithm
Provides a clear hemodynamic picture across various patient conditions and surgical procedures
*Data on File
FloTrac system algorithm provides clarity in various patient conditions and procedures
FloTrac system validated algorithm
Offers specific monitoring of a broad range of changing patient conditions
The FloTrac system algorithm is based on the principle that aortic pulse pressure (PP) is proportional to stroke volume (SV) and inversely related to aortic compliance. The algorithm compensates for the effects of compliance on PP based on age, gender, and body surface area (BSA).
Through continuous beat detection and analysis, the FloTrac system algorithm allows for the ongoing use of Stroke Volume Variation. The FloTrac system algorithm enables the display and use of SVV in patients with multiple premature atrial or ventricular contractions and allows you to guide volume resuscitation despite most arrhythmias.5,6,7
The SVVxtra algorithm restores the respiratory component of the arterial pressure curve so that SVV continues to reflect the physiological effects of mechanical ventilation on the heart.5
Model Numbers
| Model | Description | Length | Unit of Measure |
| MHD6 | FloTrac sensor | 60 in/ 152 cm | 1 Each |
| MHD65 | FloTrac sensor | 60 in/ 152 cm | 5 Each |
| MHD6AZ | FloTrac sensor with VAMP adult system | 60 in/ 152 cm | 1 Each |
| MHD6AZ5 | FloTrac sensor with VAMP adult system | 60 in/ 152 cm | 5 Each |
| MHD6C502 | FloTrac sensor, with VAMP adult system and TruWave pressure transducer | 60 in/ 152 cm | 5 each |
| MHD8 | FloTrac sensor | 84 in/ 213 cm | 1 Each |
| MHD85 | FloTrac sensor | 84 in/ 213 cm | 5 Each |
| MHD8C503 | FloTrac sensor with TruWave pressure transducer | 84 in/ 213 cm | 5 each |
Clinical application
Proactively manage pressure and flow components of perfusion
The minimally-invasive FloTrac system offers continuous clinical decision support to enable proactive clinical decisions.
The FloTrac system provides access to advanced hemodynamic parameters allowing you to evaluate hemodynamic instability and guide appropriate treatment.
Studies show associations between intraoperative hypotension and increased risk of acute kidney injury (AKI) and myocardial injury - the leading cause of post-operative mortality within 30 days after surgery.
Advanced hemodynamic monitoring parameters CO, SV, SVV, SVR, and MAP provided by the FloTrac system can help you determine the cause of instability.
If the underlying cause of hemodynamic instability is related to flow generation, continuous parameters provided by the FloTrac system can help you determine appropriate fluid therapy.
Continuous assessment of pressure and flow parameters offers decision support to help manage the duration and severity of intraoperative hypotension episodes.
Edwards clinical education
Hemodynamic education empowering clinical advancement
With a long-term commitment to improving the quality of care for surgical and critical care patients through education, Edwards clinical education meets you no matter where you are in the learning process — with a continuum of resources and tools that continuously support you as you solve the clinical challenges facing you today, and in the future.
Resources
Watch videos, explore the Fluid Response Simulator, sign up for eLearnings, and download the Normal Hemodynamic Parameters pocket card.
Product implementation
Product setup
References
- Cannesson, M. (2010). Arterial pressure variation and goal-directed fluid therapy. Journal of Cardiothoracic and Vascular Anesthesia, 24(3), 487-97.
- Benes, et al. (2014). Effects of GDFT based on dynamic parameters on post surgical outcome. Critical Care, 18:584.
- McGee, WT. (2009). A simple physiologic algorithm for managing hemodymanics using stroke volume and and stroke volume variation. Physiologic optimization program. J Intensive Care Med. 24(6):352-60.
- McGee, WT., et al. (2013). Physiologic Goal- Directed therapy in the perioperative period. J Cardiothoracic and Vascular Anesthesia. 27(6):1079-1086.
- Patent WO 2011/094487 A2, Elimination of the Effects of Irregular Cardiac Cycles in the Determination of Cardiovascular Parameters
- Biais M, Ouattara A, Janvier G, Sztark F. Case scenario: respiratory variations in arterial pressure for guiding fluid management in mechanically ventilated patients. Anesthesiology. 2012;116(6):1354-61
- Monnet X, Marik PE, Teboul JL. Prediction of fluid responsiveness: an update. Ann Intensive Care. 2016;6:111.
Important safety information
Important safety information
CAUTION: Federal (United States) law restricts this device to sale by or on the order of a physician.
See Instructions For Use (IFU) / Directions For Use (DFU) for full prescribing information, including indications, contraindications, warnings, precautions and adverse events.
