ForeSight tissue oximetry sensor
Absolute measures, comprehensive insights
The right monitoring makes a difference –
for all your patients' differences
The tissue oximetry and advanced hemodynamic insights you need to identify and even reverse cerebral desaturations for a diverse patient population are now available on one monitor.
ForeSight tissue oximetry sensor:
- Accounts for patient-to-patient differences, including skin tone, size, age, scalp-to-cortex distance and acuity
- Delivers absolute StO2 values, making a preinduction baseline optional
- Measures relative change in total tissue hemoglobin, providing insights into causes of StO2 changes
- Integrates with HemoSphere platform for an all-in-one view of patient perfusion
With ForeSight sensor, you can have the reliable, actionable tissue oximetry insights you need to intervene when it matters most.
The ForeSight sensor difference
Across a diverse patient population
As part of a complete hemodynamic profile
Designed for patient diversity
A tissue oximetry sensor designed with patient differences in mind
Due to the limitations in some other tissue oximetry sensor designs, patient differences including melanin or bilirubin concentrations, cranial thickness, etc., can cloud the accuracy – and therefore the reliability – of oxygenation measures.
With a unique sensor design and exclusive fifth wavelength of near infrared light (NIRS), ForeSight sensor can account for these patient differences – enabling reliable StO2 measures from patient to patient.
Study shows ForeSight sensor accounts for individual differences in melanin
Figure 1.Preoperative tissue oximetry, Sun et. al.
In conventional two-wavelength tissue oximetry systems, skin pigmentation has been shown to interfere with the clinical measurement of regional cerebral oxygen saturation. (Sun et al.)
See the study
Figure 2. ForeSight sensor readings by race, Stannard et. al.
ForeSight tissue oximetry sensor has been demonstrated to accommodate for the melanin present in a patient’s skin because of its fifth wavelength of near infrared light (NIRS). (Stannard et al.)
See the study
ForeSight sensor is designed to penetrate 25% deeper than other technologies
Research shows that a 2 cm depth of penetration is insufficient for accurate measurement of StO2 in adult cardiac patients with a deeper scalp-to-cortex distance. But ForeSight sensor is designed to penetrate deeper. At 2.5 cm, ForeSight sensor can provide reliable readings for patients with greater than 2 cm scalp-cortex distance.
Understanding the role of melanin in tissue oximetry
Absolute values, actionable insights
Preinduction baseline optional
The realities of the operating room don’t always allow for the opportunity to set a preinduction baseline – but with ForeSight sensor you can start monitoring without delay.
ForeSight sensor provides continuous, absolute StO2 readings without the need for a preinduction baseline – while still giving you the freedom to set treatment thresholds and trend from a patient baseline.
Insight into desaturation events
In addition to StO2 measurements, ForeSight sensor trends the relative change in total tissue hemoglobin (ΔctHb). The ΔctHb parameter gives you greater insights into potential causes of StO2 imbalances so that you can better understand and respond to desaturation events.
Algorithms tailored to placement on body
ForeSight sensor algorithms are calibrated and validated to both cerebral and somatic regions:
- Cerebral oximetry SctO2 calibrated and validated to SjvO2
- Somatic oximetry SmtO2 calibrated and validated to ScvO2
Additionally, you can view regional oxygenation values specific to sensor location via HemoSphere advanced monitoring platform.
Actionable insights to protect
Because ForeSight sensor integrates with HemoSphere advanced monitoring platform, you get more than numbers – you get comprehensive insights into patient perfusion, as well as the ability to identify the root cause of imbalances.
Cerebral and somatic tissue oxygen desaturations are common
All-in-one monitoring
ForeSight system delivers tissue oximetry insights via HemoSphere advanced monitoring platform
One monitor, comprehensive insights
Tissue oximetry measures are only one part of a surgical patient’s hemodynamic profile.
That’s why the ForeSight system is available as part of the HemoSphere advanced monitoring platform – making it the only system that allows you to see a comprehensive view of patient perfusion (including pressure, flow and tissue oximetry) on the same monitor.
This “all-in-one” view delivers comprehensive insights into patient perfusion that can help you drill down to identify the root cause of imbalances – enabling you to administer interventions with confidence.
Also available with HemoSphere monitor

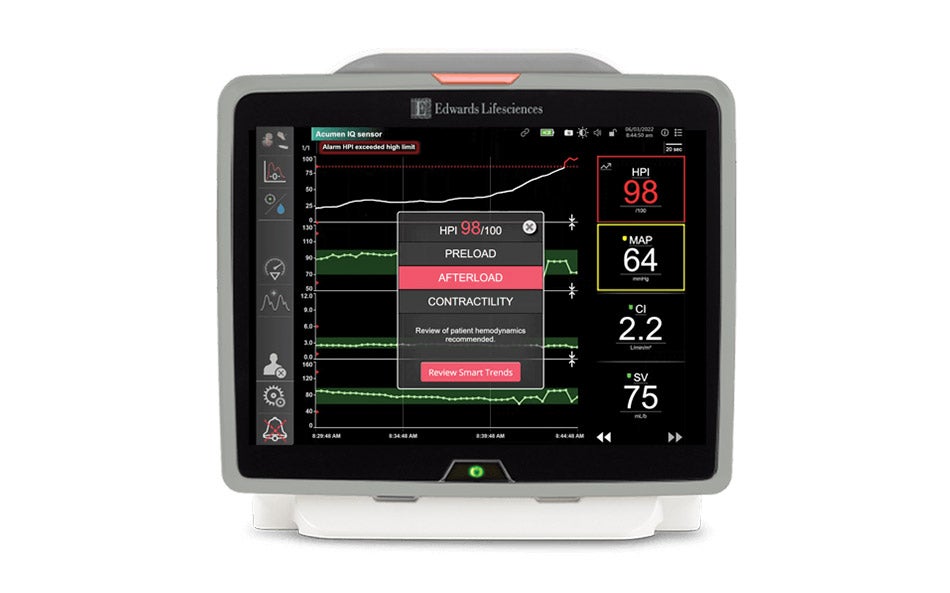

Acumen Hypotension Prediction Index (HPI) software
This first-of-its-kind predictive software alerts you to the likelihood of a patient trending toward hypotension – and may help to prevent or mitigate cerebral desaturations caused by hypotension.
Discover Acumen HPI software

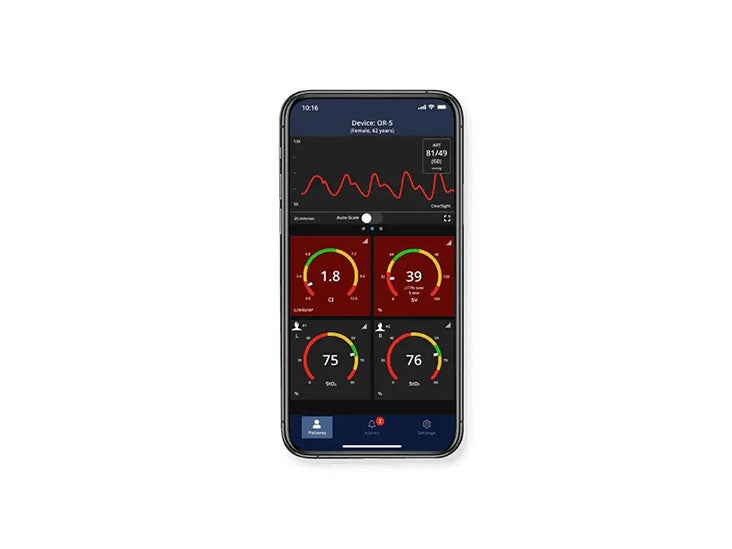

Viewfinder remote app
With Viewfinder remote app, your HemoSphere monitors’ comprehensive* hemodynamic insights are accessible from anywhere – enabling you to view multiple patients simultaneously and improve communication among colleagues and across care settings.
*Acumen Assisted Fluid Management (AFM) software feature not included on Viewfinder remote app
Discover Viewfinder remote app
Edwards clinical education
Comprehensive education empowering clinical advancement
With a long-term commitment to improving the quality of care for surgical and critical care patients through education, Edwards clinical education meets you no matter where you are in the learning process – with a continuum of resources and tools that continuously support you as you solve the clinical challenges facing you today, and in the future.
| Model number | Description |
| FSESL | ForeSight Elite large sensor (≥40 kg), 20 sensors/box |
The Edwards Advantage
We are committed to providing your institution, clinicians and staff with the highest levels of customer service and support to ensure seamless product implementation and ongoing use, including:
24/7 Technical support
800.822.9837
For product information and orders
800.424.3278
Let us help you
Important safety information
Important safety information
CAUTION: Federal (United States) law restricts this device to sale by or on the order of a physician.
See Instructions For Use (IFU) / Directions For Use (DFU) for full prescribing information, including indications, contraindications, warnings, precautions and adverse events.
