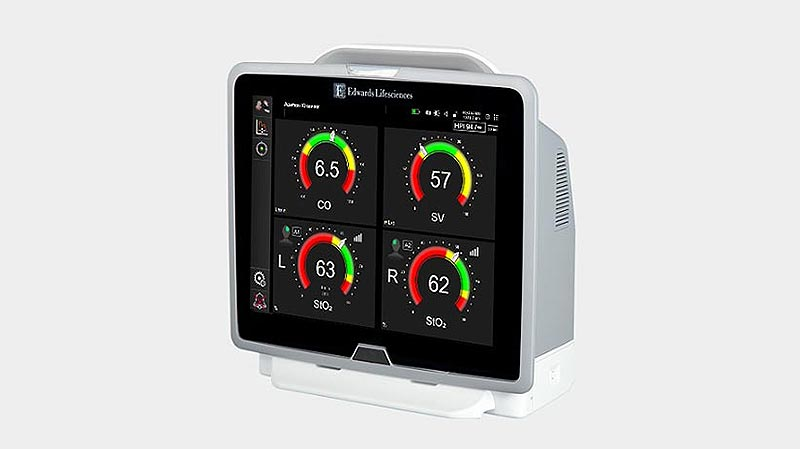

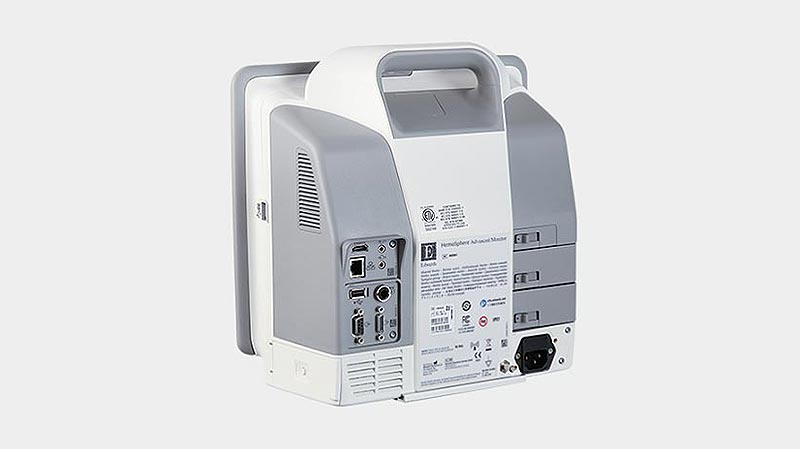

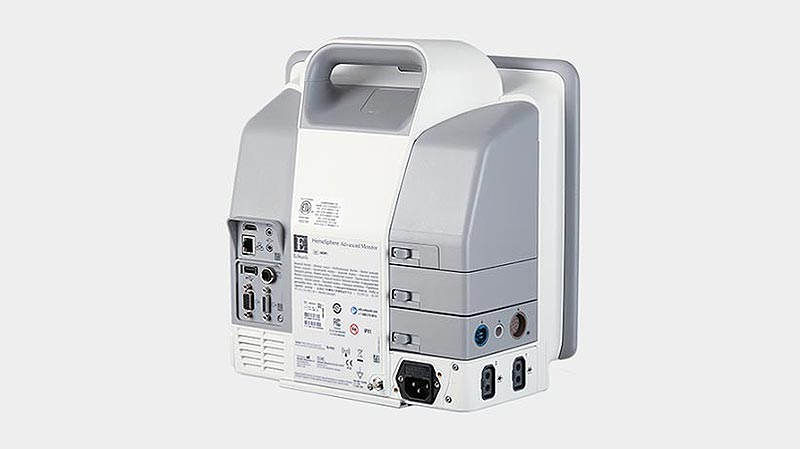

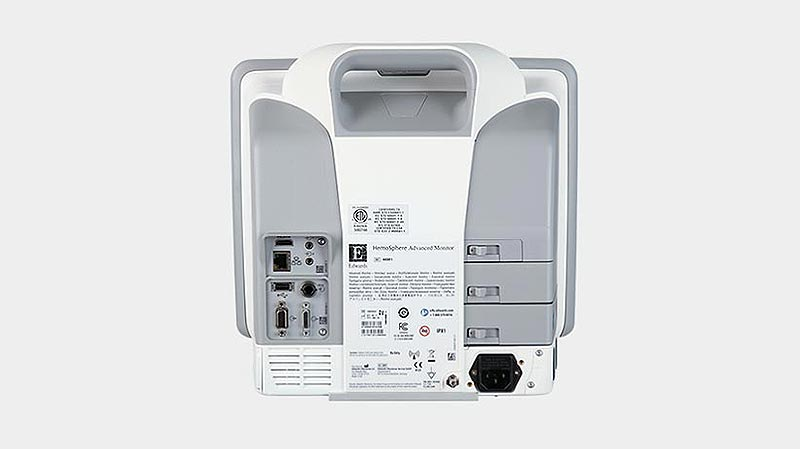

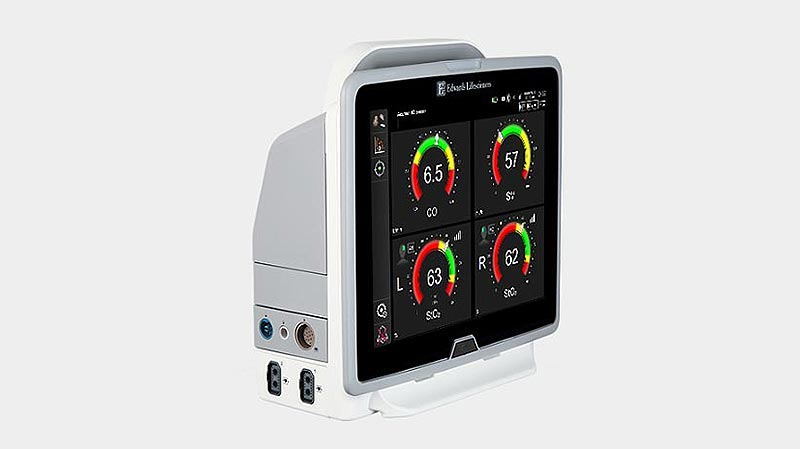

HemoSphere advanced monitoring platform provides a comprehensive view of hemodynamics and tissue oximetry, giving you data to inform your clinical decisions. From one monitor, you can continuously monitor your patient using both oxygen saturation and hemodynamic parameters to ensure they remain adequately perfused.
The only platform to offer full-range cuff, sensor and catheter compatibility along with first-of-its-kind hypotension predictive decision support software*, HemoSphere advanced monitor enables proactive, individualised patient management.
*Acumen Hypotension Prediction Index software is unlocked with the Acumen IQ sensor or Acumen IQ cuff.

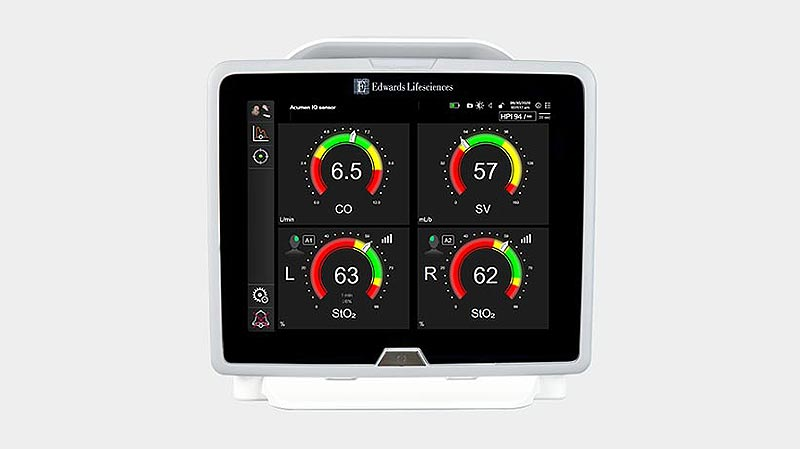

HemoSphere advanced monitoring platform offers a unique visual monitoring experience with enhanced screen clarity, intuitive navigation, and responsive touch for intelligent decision support and individualised patient care.
*Acumen Hypotension Prediction Index software is unlocked with the Acumen IQ sensor or Acumen IQ cuff
HemoSphere advanced monitoring platform offers full-range device compatibility for proactive decision support across a diversity of patient profiles and across care settings.

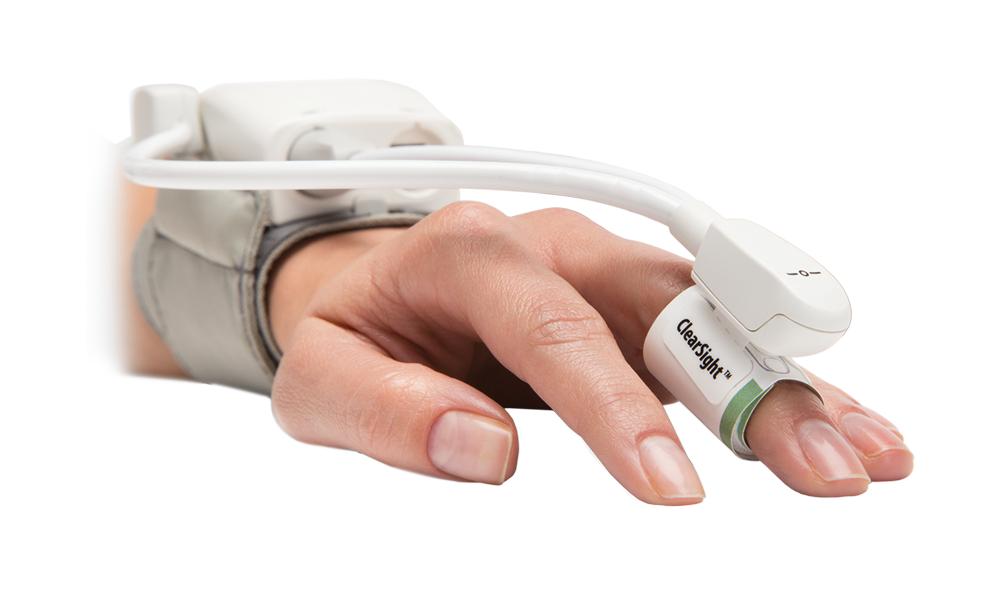

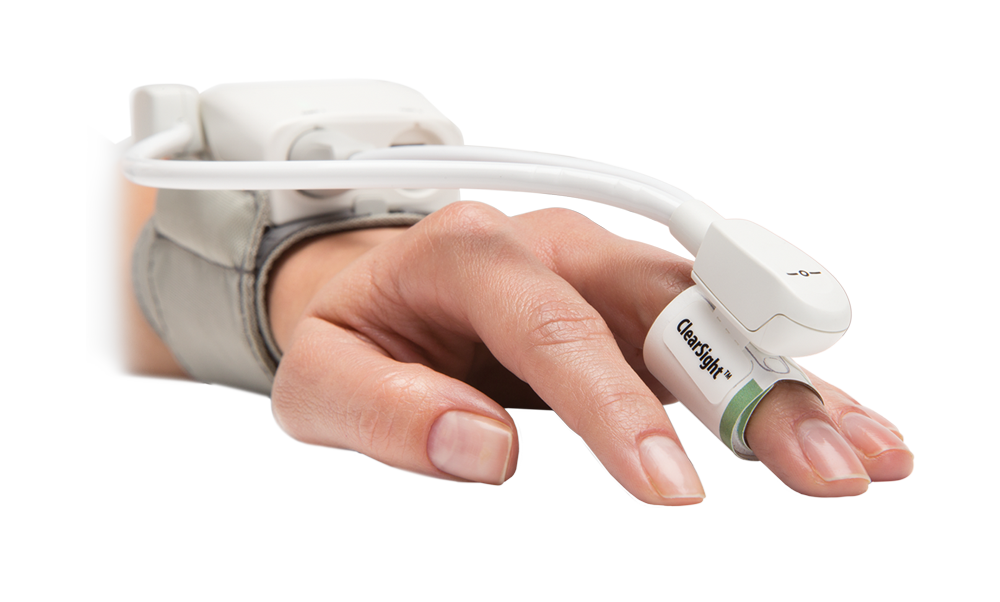

ClearSight cuff provides continuous blood pressure and advanced hemodynamic parameters from a noninvasive finger cuff. Continuous data enables you to proactively optimise perfusion through hemodynamic management.
CO/CI | SV/SVI | SVV | SVR/SVRI | MAP

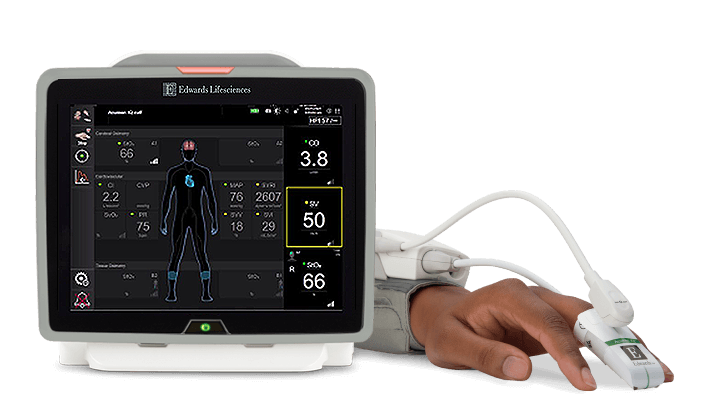

Acumen IQ cuff unlocks Acumen HPI software and provides continuous blood pressure and advanced hemodynamic parameters from a noninvasive finger cuff.* Acumen HPI software is the first-of-its kind technology that detects hemodynamic instability and offers insight into potential targets for intervention.
CO/CI | SV/SVI | SVV | PPV | SVR/SVRI | Eadyn | dP/dt | SYS/DIA/MAP | HPI
ForeSight system is a highly accurate, precise, and tailorable tissue oximetry system for continuous monitoring. Reliable, real-time monitoring of surgical patients provides decision support for detecting and managing hypoxic events as soon as they occur.
StO2
Acumen IQ sensor unlocks the Acumen Hypotension Prediction Index (HPI) software. This first-of-its-kind predictive decision support software detects the likelihood of a patient trending towards a hypotensive event*. It also attaches to any existing radial arterial line and automatically calculates key parameters every 20 seconds, reflecting rapid physiologic changes in surgical and nonsurgical patients.
*A hypotensive event is defined as MAP <65 mmhg for a duration of at least one minute.
HPI | Eadyn | dP/dt | CO/CI | SV/SVI | SVV/PPV | SVR/SVRI | MAP
Delivers advanced pressure and flow parameters for managing perfusion. Offers continuous insight to determine patient’s hemodynamic status. Seamlessly connects to any existing arterial catheter.
CO/CI | SV/SVI | SVR/SVRI | SVV/PPV | MAP

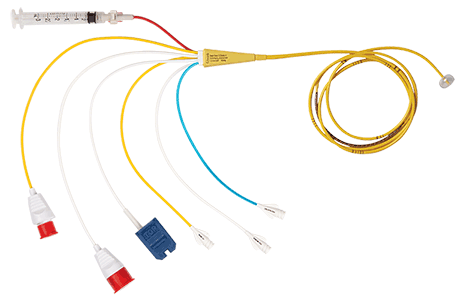

Continuously assesses flow, pressure, and oxygen delivery and consumption to assist in your early evaluation of cardiac performance.
CO/CI | SV/SVI | SVR/SVRI | PVR/PVRI | RVEF/EDV | SvO2 | CVP | PAP | PAOP*
*PAOP available through balloon occlusion function.
The first oximetry catheter designed for pediatrics that can provide early indication of critical changes in a patient’s clinical condition via continuous, real-time monitoring of oxygen delivery and consumption.
ScvO2
Hemodynamic and tissue oximetry insights provided by HemoSphere advanced monitoring platform can help guide you with proactive decision support throughout the continuum of care so you can maintain optimal patient perfusion.
Cerebral and tissue desaturations are serious and may lead to complications such as post-operative cognitive dysfunction and increased incidence of stroke. Having a comprehensive picture of oxygen delivery and consumption may allow you to reduce the clinical implications of prolonged desaturations.
Severe sepsis and septic shock are among the most common causes of morbidity and mortality in patients admitted to the intensive care unit. Access to cardiac output (CO) and stroke volume (SV) enables early detection and management of sepsis which is critical to improving survival rates and reducing the economic burden of sepsis.
Hypotension is common. Studies show strong associations between intraoperative hypotension (IOH) and increased risk of acute kidney injury (AKI) and myocardial injury, which is the leading cause of post-operative mortality within 30 days after surgery1. Early detection of hypotension by continuous hemodynamic monitoring can reduce a patient’s risk.
HemoSphere advanced monitoring platform enables access to continuous pressure and flow parameters, helping to determine patient fluid responsiveness and guide individualised fluid management targets. Proactive monitoring of stroke volume (SV) and stroke volume variation (SVV) have been shown to effectively optimise patient fluid resuscitation and guide proper fluid administration.
Comprehensive data keeps you one step ahead in a rapidly changing environment, enabling you to make decisions proactively, maintain patient safety and accelerate their recovery.
+When used with a compatible hemodynamic monitor and accessories.
*PPV available on Acumen IQ sensor, FloTrac sensor and ClearSight cuff when using upgraded HemoSphere monitoring platform.
**PAOP available through balloon occlusion function.
***CVP required to get SVR/SVRI.
Please contact your Edwards Lifesciences representative for sensors and catheters that are compatible with HemoSphere monitor.
| HemoSphere platform kits | Description |
| HEMCARDIAQ | HemoSphere advanced monitoring system with Swan-Ganz module, oximetry cable, pressure cable, HPI, and ForeSight tissue oximetry system (module and cable) |
| HEMAQSR2 | HemoSphere advanced monitoring system with ClearSight module, pressure cable, HPI, and tissue oximetry module |
| HEMTI2 | HemoSphere advanced monitoring system with with ForeSight tissue oximetry system (module and cable) |
| HemoSphere upgrade kits | |
| HEMCSMUPG | HemoSphere ClearSight with HPI upgrade kit |
| HEMAQCXUPG | HemoSphere pressure cable, HPI, and ForeSight tissue oximetry upgrade kit |
| HEMCX2 | HemoSphere ForeSight tissue oximetry upgrade kit |
| HemoSphere modules | |
| HEMCSM10 | HemoSphere ClearSight module |
| HEMTOM10 | HemoSphere ForeSight tissue oximetry module |
| HEMSGM10 | HemoSphere Swan-Ganz module |
| HemoSphere cables | |
| HEMOXSC100 | HemoSphere oximetry cable |
| HEMFSM10 | HemoSphere ForeSight tissue oximeter cable |
| HEMPSC100 | HemoSphere pressure cable |
| HEMDPT1000 | HemoSphere pressure-out cable |
| 70CC2 | Patient CCO cable |
| PC2K | Pressure controller kit |
| EVHRS | Heart reference sensor |
| HemoSphere accessories | |
| HEMBAT10 | HemoSphere battery pack |
| HEMOXCR1000 | HemoSphere oximetry cradle |
| HEMRLSTD1000 | HemoSphere advanced monitor roll stand |
| PCCVR | Pressure controller cover |
We are committed to providing your institution, clinicians and staff with the highest levels of customer service and support to ensure seamless product implementation and ongoing use, including:
24/7 Technical support
For product information and orders
